10 100 1000m Single Mode 20km Fiber Optic Mini Media Converter

Name: 10 100 1000m Single Mode 20km Fiber Optic Mini Media Converter
Brand: UTOPTEK
Price: 1 USD

Buy cheap 10 100 1000m Single Mode 20km Fiber Optic Mini Media Converter product

Brand Name : UTOPTEK

Model Number : UT-MC1001-S20

Certification : CE FCC RoHs

Place of Origin : China

MOQ : 2pcs

Payment Terms : T/T, Western Union, Paypal, Alipay, Wechat etc.

Supply Ability : 5000pcs per week

Delivery Time : 1-2 days

Packaging Details : 60pcs/Carton, 57*43*50CM, G.W.:22Kg

Product name : Mini Fiber media converter

Interface : 1 fiber+1 RJ45 port

Fiber type : Single mode, dual fiber

Fiber connector : SC/ST/FC,LC(SFP) optional

Power input : DC5V 1A

Speed : 10/100/1000Mbps

Distance : 20km

Wavelength : TRX1310nm

Warranty : 12months

Product size : 61x42x22mm

N.W/G.W(kg) : 0.05kg/0.23kg

Housing Material : aluminium alloy

Shell thickness : 0.8mm

Operating Temperature : -30～+70°C

Contact Now

Order Models:

Mini size Media Converter List
Model	Speed	Fiber Type		Wavelength	Dist.	Optical port
UT-MC101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:850nm	2km	SC
UT-MC101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:1310nm	2km	SC
UT-MC101-S20	10/100Base-Tx to 100Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC101-SFP	10/100Base-Tx to 100Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP

UT-MC1001-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:850nm	550m	SC
UT-MC1001-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:1310nm	550m	SC
UT-MC1001-S20	10/100/1000Base-Tx to 1000Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC1001-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC1001-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC1001-SFP	10/100/1000Base-Tx to 1000Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP
For long distance: 20/40/60/80/100/120km, pls contact our sales.

Overview:

This compact Fiber Media Converter transforms 100Base-T (Copper) media to 100Base-SX/LX (Fiber) media and vice versa.

The 100Base-T RJ-45 port supports a full duplex connection at wire speed.

The Fiber optical supports both multimode (SX) or single-mode (LX) fiber port.

Features:

1x 10/100Mbps Auto-Negotiation RJ45 Port Supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode from the TX port
LEDs Indicate Ethernet, Fiber Link and the Power Status at a Glance
Plug-and-play, Support 19inch 2U 14Slots Chassis & Stand-alone Use
Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
Extends Fiber distances up to: 0~2km on Multimode, 0~120km on Single Mode
Fiber port support ST, SC, FC(1*9), SFP optical connectors are optional

Technical sheet:

Fixed Port	1*10/100/1000Base--TX RJ45 port (Data)
Fixed Port	1*1000M Optical Fiber Port
Network Protocol	IEEE802.3
	IEEE802.3i 10BASE-T
	IEEE802.3u100BASE-TX
	IEEE802.3ab 1000BASE-TX/FX
Port Specification	10/100/1000BaseT(X) Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	1024Mbps
Packet Forwarding	7.2Mpps
MAC Address	4K
Buffer	2.5M
MTBF	>100,000 hours
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter)
	100BASE-TX : Cat5 or later UTP(100 meter)
	1000BASE-TX : Cat5 or later UTP(100 meter)
	Multi mode double fiber(MAX 850M/2KM)
	Single mode double fiber (default 20KM)
	Single mode single fiber(default 20KM)
	Optional 3-120KM Optical Fiber Module
Watt	≤5W
LED Indicator	PWR:Power LED
	PDX:Working status LED
	TX :Network Port LED
	FX:(Optical fiber LED)
	Link/Act(Optical Fiber Port State LED)
Power	External power: DC5V ; Input: AC100~240V;50/60Hz
Operating Temperature/Humidity	0～+70°C; 5%～90% RH Non coagulation
Storage Temperature/Humidity	-20～+75°C; 5%～95% RH Non coagulation
Product size/Packing size(LWH)	61mm44mm22mm
Product size/Packing size(LWH)	230mm125mm55mm
N.W/G.W(kg)	0.05kg/0.23kg
Installation	Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level	3KV 8/20us
Lightning Protection level	IP30
Certificate	CE mark, commercial; CE/LVD EN60950；
Certificate	FCC Part 15 Class B; RoHS; CNAS;MA
Warranty	Whole device for 1 year

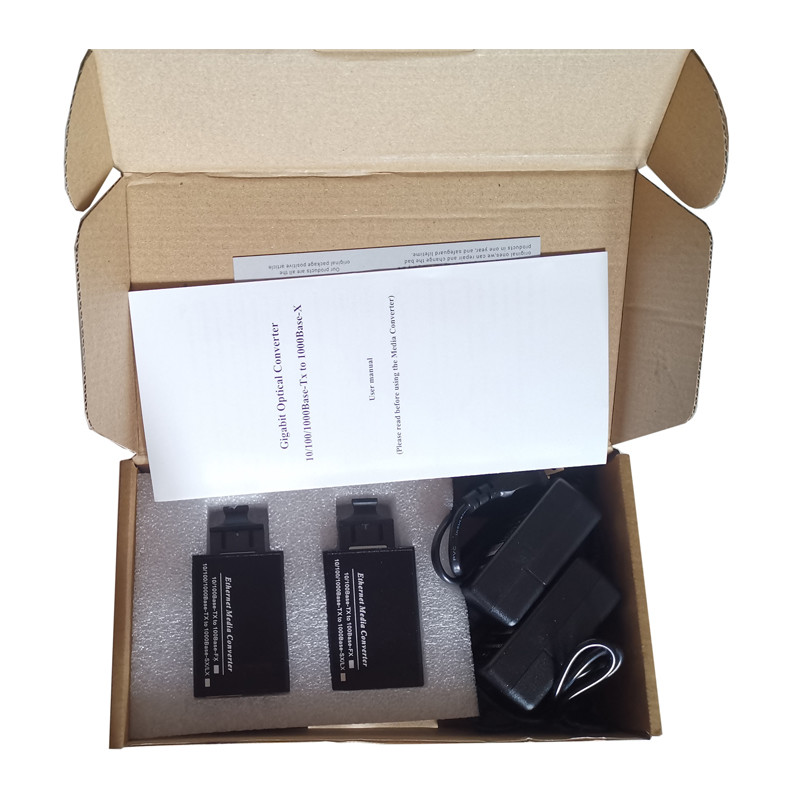

Products show:

10 100 1000m Single Mode 20km Fiber Optic Mini Media Converter

Connection topology:

10 100 1000m Single Mode 20km Fiber Optic Mini Media Converter
